Ezell Aviation - EJ-1

About Ezell Aviation - EJ-1

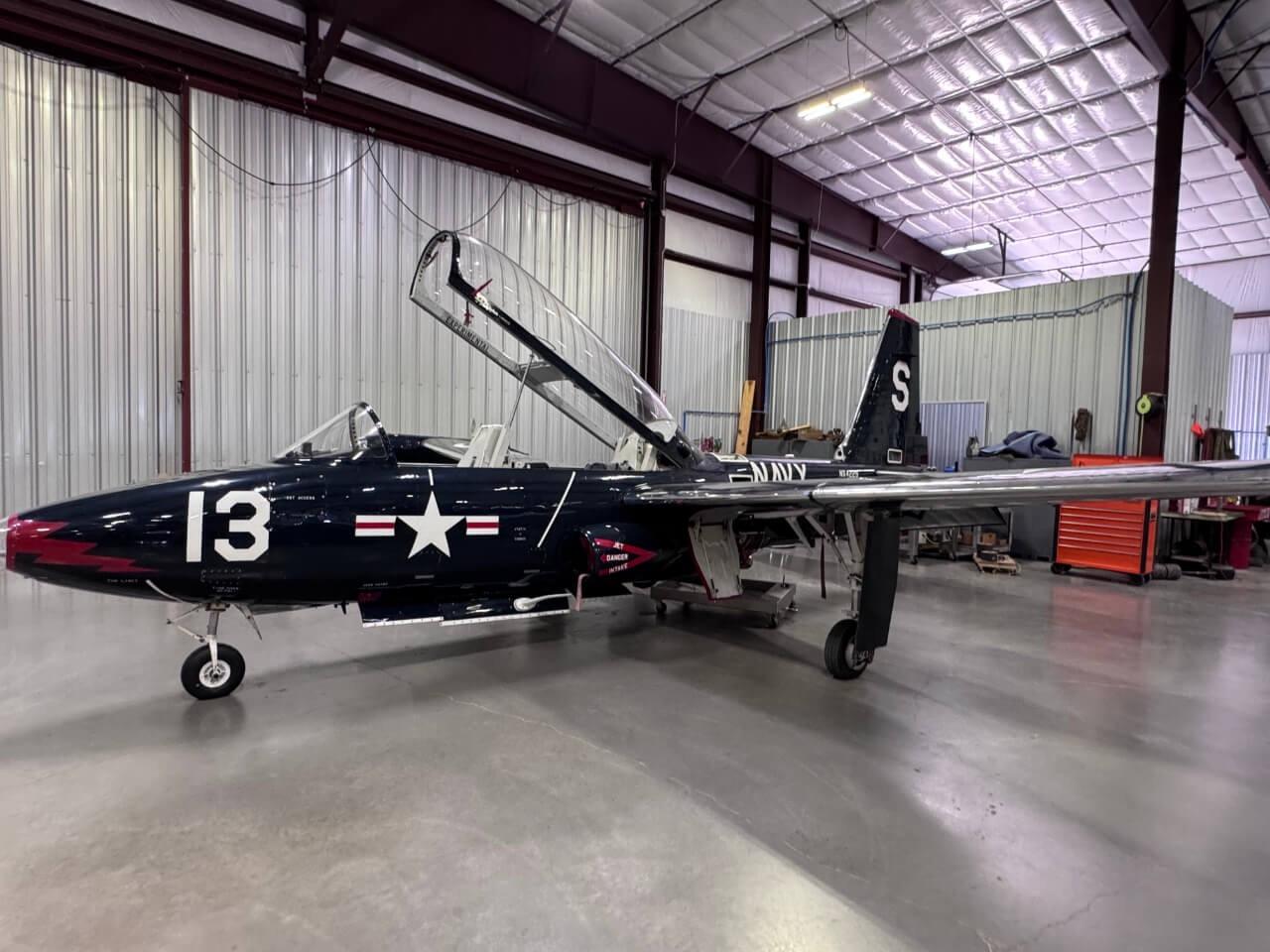

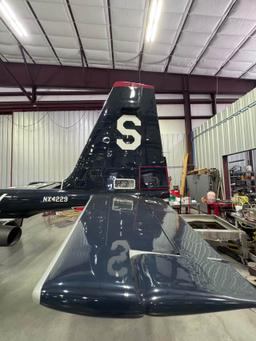

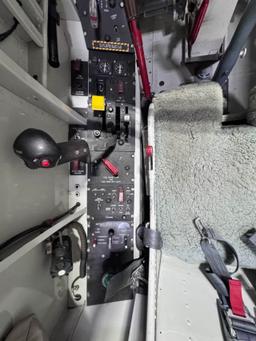

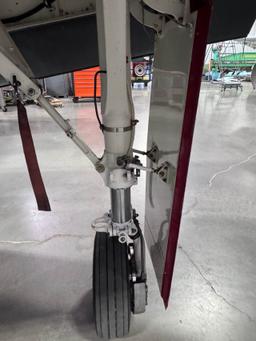

The EJ-1 aircraft was constructed of miscellaneous parts. A center section wing and fuselage unit were obtained and existing systems removed. The structure was stripped and cleaned. The wing/fuselage unit was inspected and repaired as necessary using AC 43.13 for reference. The unit was then painted, followed by installation of electrical, hydraulic and flight control systems to facilitate operation of the aircraft. Wheels and brakes from a Piper Aerostar were installed. Outer wing panels, wetted for fuel storage, were designed and fabricated from 7075 and 2024 alloy materials. Tip fuel tanks from a Mitsubishi MU-2 were utilized. A fuel system was installed that transfers fuel from the tips to the wings to the center section from both sides to a single header tank with integral boost pump. A swept vertical stabilizer was fabricated to increase area. Speed brakes were fabricated and installed in the vertical stabilizer. A larger intake system was fabricated and installed to utilized a General Electric J-85-17A powerplant. Operational check of all installed. General Electric J-85-17A 266.4 Hrs. Since Inspection and Installation Front Cockpit Clock – E Fuel Gauge Gyro Horizon Airspeed Indicator Altimeter Inst Vert Speed Ind HSI Indicator Storm Scope BF Goodrich WX950 Standby Gyro Horizon – Jet Electronics International – Clock Elect Inter – Fuel Gauge RPM GE Exhaust Temp Weston Oil Pressure Edison Oil Temperature Lewis Hydraulic Pressure Fuel Pressure MKR Beacon Nat Intercom GNS 530 GNC 250 GTX 327 Elect Inter – Voltmeter G-Meter ACK Encoder Gear Indicator S-Tec A/P Head Oxygen Regulator Vert Card Compass GE Trim Indicator FR Shadin Rear Cockpit Gyro Horizon Air Speed Indicator Altimeter Inst Vert Speed Ind Turn & Bank (A & PCTRL) Elect Inter-Clock RPM GE Exhaust Temp Oil Pressure Fuel Pressure MKR Beacon Weston Edison Lewis Edison Nat Intercom GNC 250 GTX 327 HS I Repeater Collins Elect Inter-Volt Meter Gear Indicator Weston Oxygen Regulator Trim Indicator GE Vert Card Compass Shadin Standby Horizon Jet RMI Servo Amp 2 Oxygen bottles PN101 – Compass Unit – 332 E-4 PN101 – Computer – 328A-36 S-TEC Computer – PFGC 0110-41 S-TEC Computer – RFGC 0109-19 S-TEC A/P Roll Servo – 0106-4-R4 S-TEC A/P Pitch Servo – 0108-3-P4 CE & I Dual Oil Temp Driver – 01-0001 Delay Timer (Engine Start) Delay Timer (Courtesy Lights) 5V Dimmer – LT-53 Fuel Boost Pump – RG111004 Hyd Pump 2 Camera Units KS-162H CCU Video Recording Unit – GV-300 D300 Audio International Switching Unit 30300327 ELT Voice Annunciator – EI AV-17

Plane Details

Plane Name N/A	Manufacturer N/A
Model Number N/A	Year of Manufacture N/A
Serial Number N/A	Category N/A
Registration Number N/A
